90W Charger Grade Power Supplies

(PENDING)

Photo	Model Number	Type	Mechanical Specification	Packing

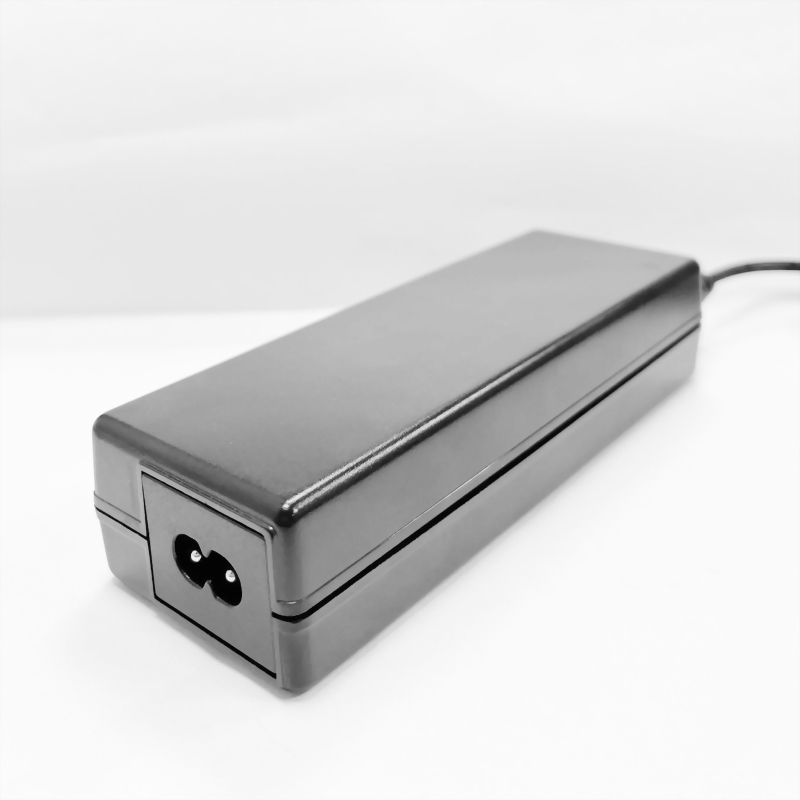

	CLA3090B-x	C8 DESKTOP

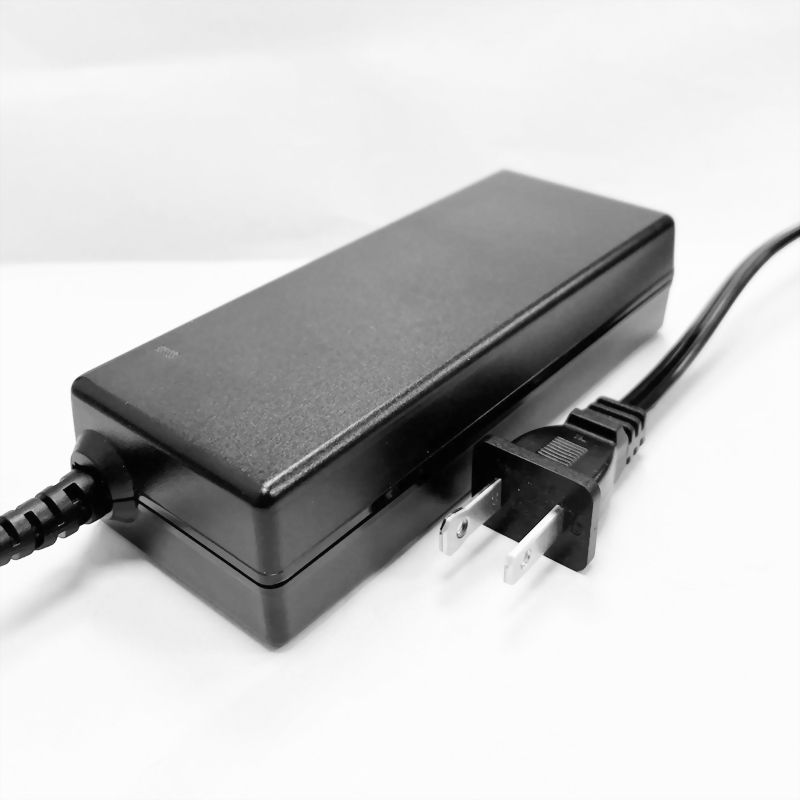

	CLA3090D-x-U	US TYPE DESKTOP
	CLA3090D-x-E	EU TYPE DESKTOP

90W Charger Grade Power Supplies - Specification

Model Number	Output Voltage	Max.Outpur Current	Max.Output Power	Download
CLA3090X-2	8~11	9.00~6.55	72
CLA3090X-3	11~13	8.18-6.92	90
CLA3090X-4	13~16	6.92~5.63	90
CLA3090X-5	16~21	5.63~4.28	90
CLA3090X-6	21~27	4.28~3.33	90
CLA3090X-7	27~33	3.33~2.73	90
CLA3090X-8	33~50	2.73~1.80	90
