15W ITE Grade Power Supplies

Photo	Model Number	Type	Mechanical Specification	Packing

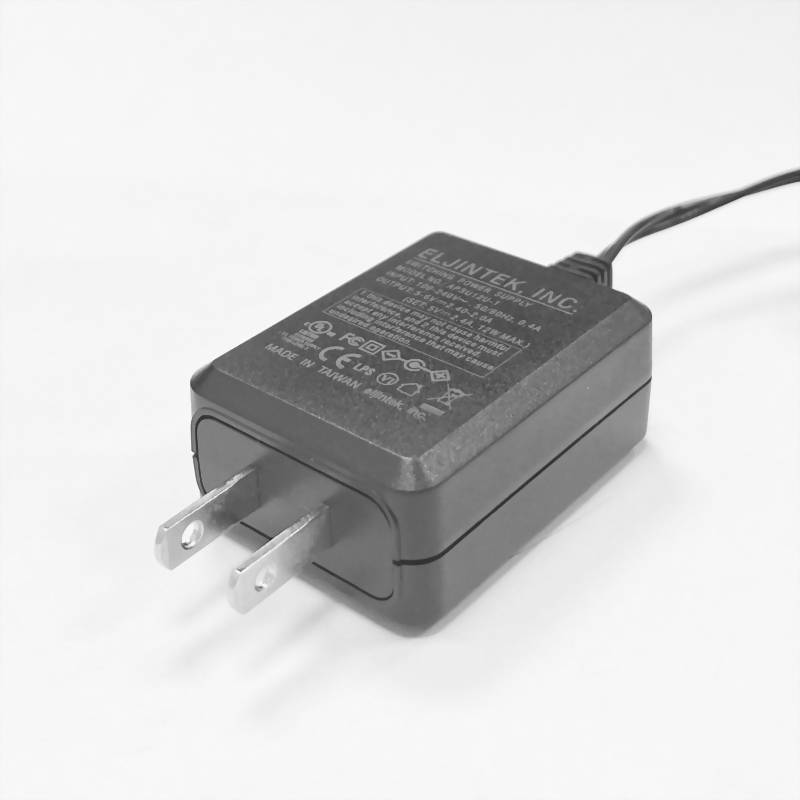

	APSU15U-x	US TYPE

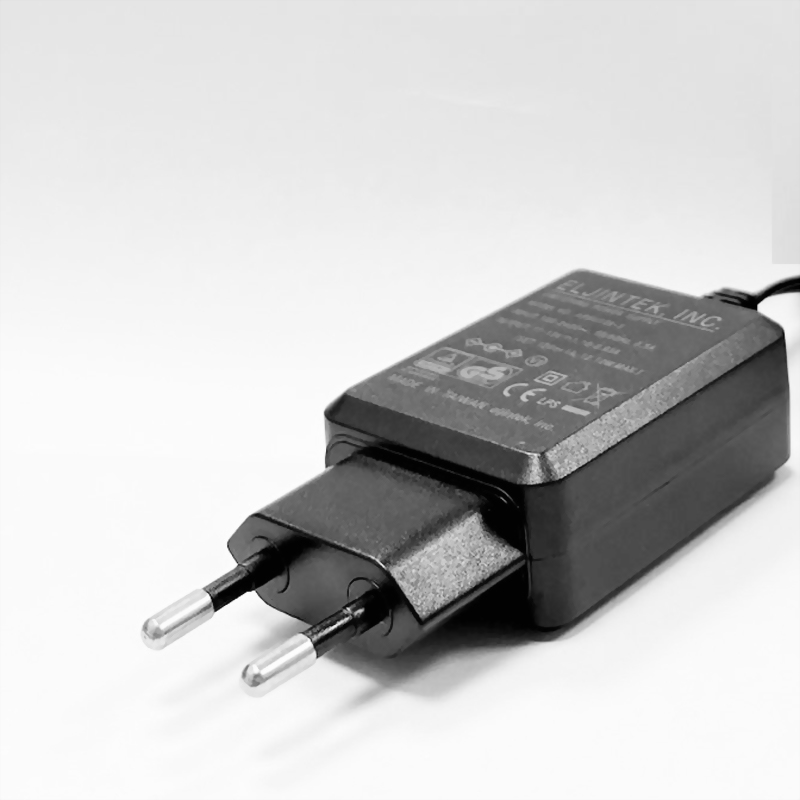

	APSU15E-x	EU TYPE

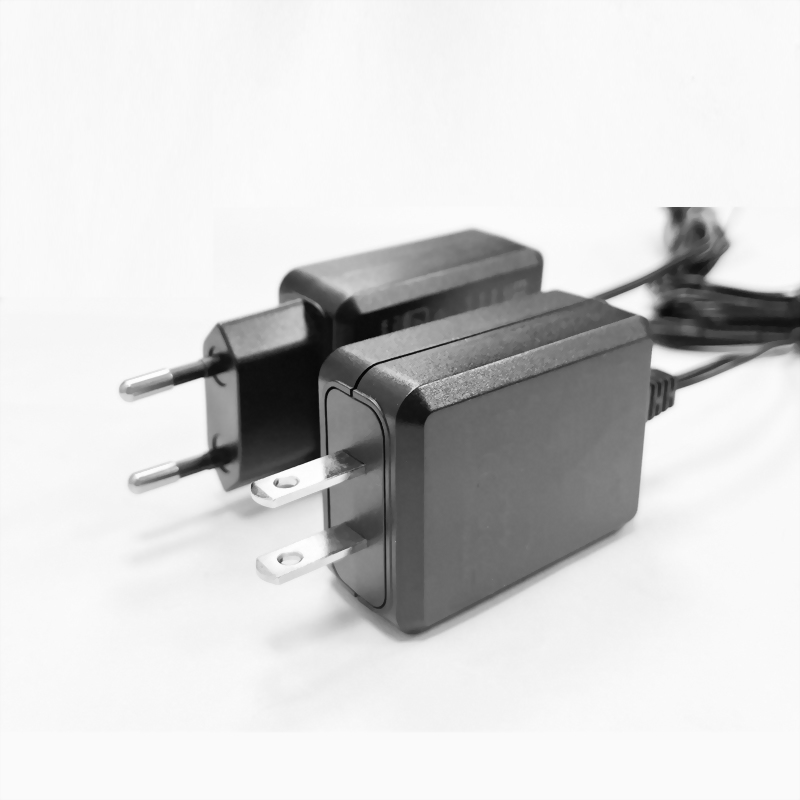

	APSU15I-x	INTERCHANGEABLE TYPE

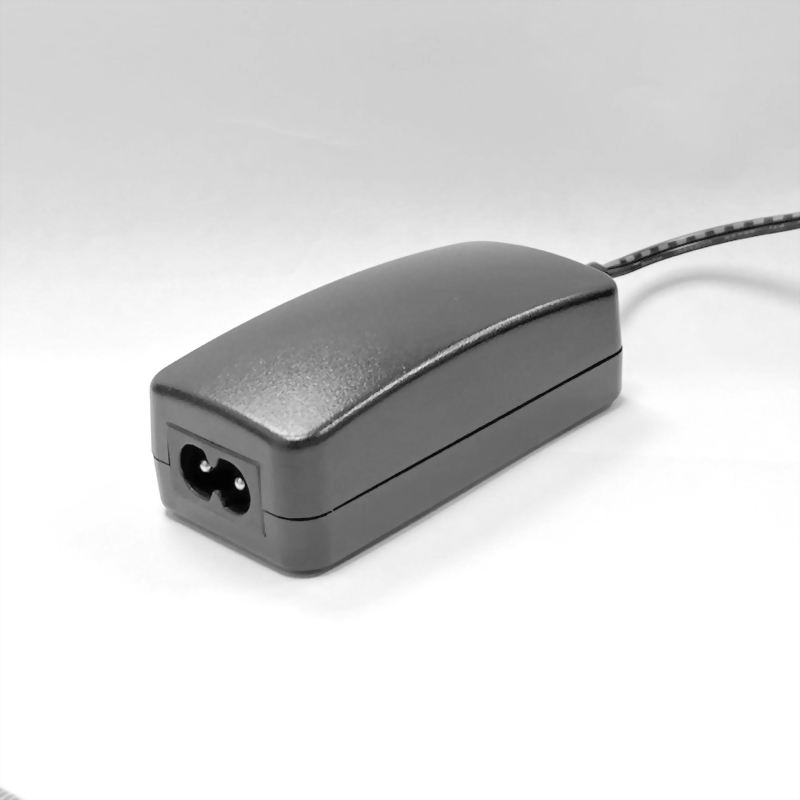

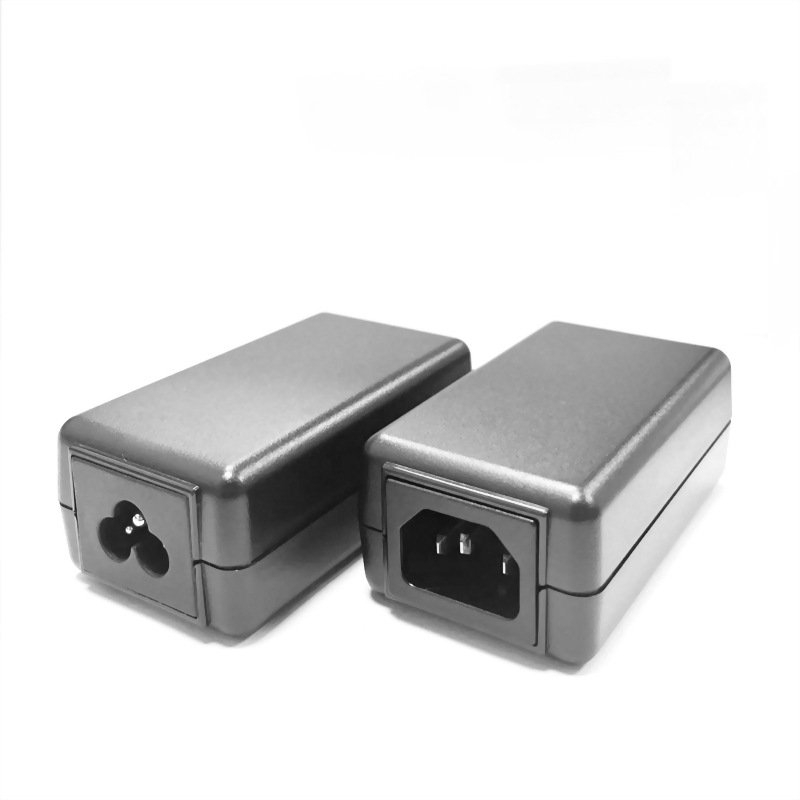

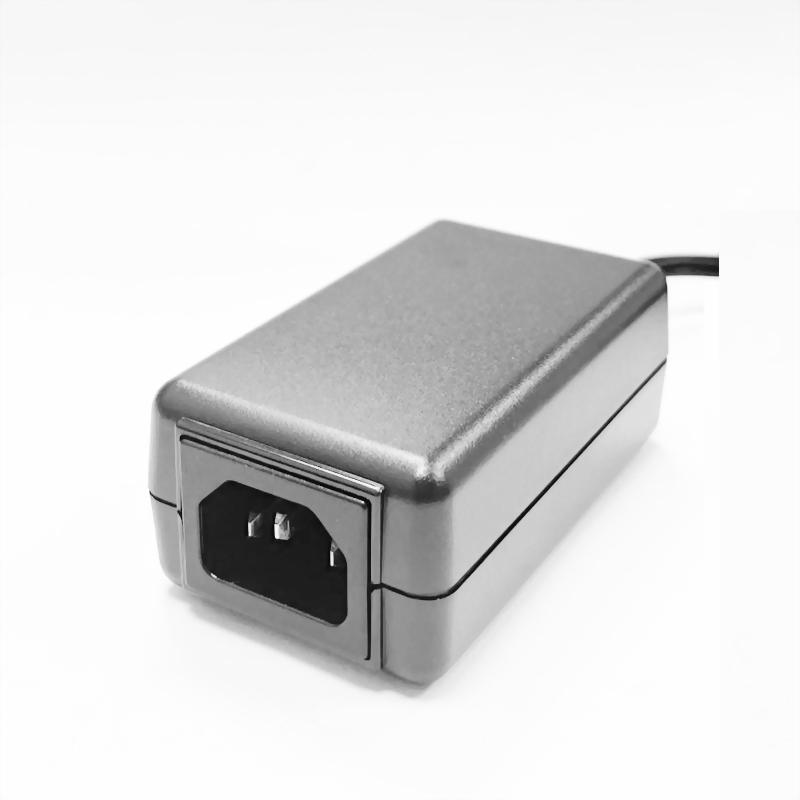

	APSU15A-x	DESKTOP TYPE

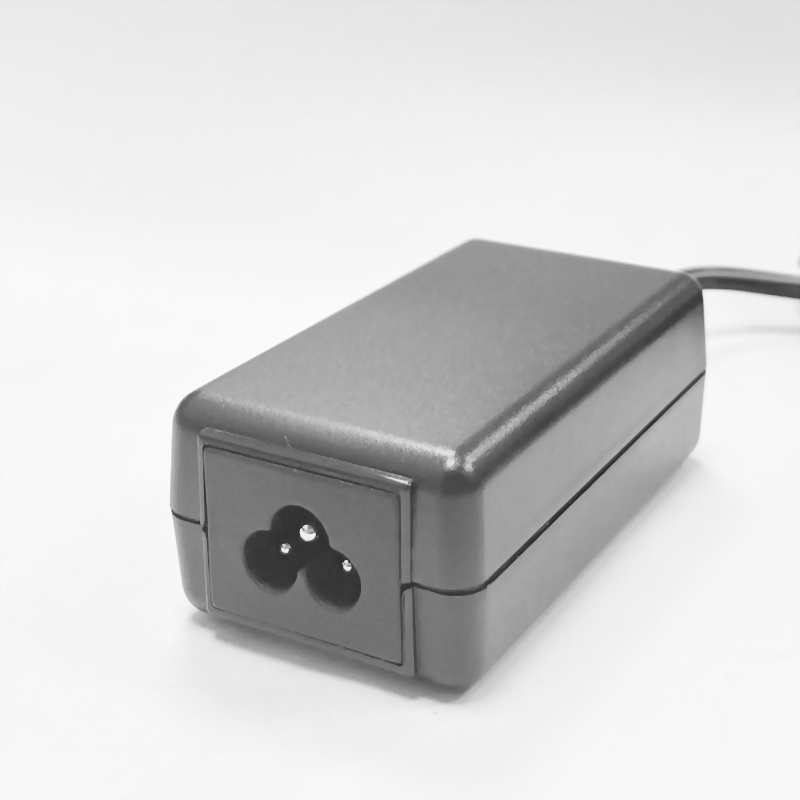

	APSU15B-x	DESKTOP TYPE

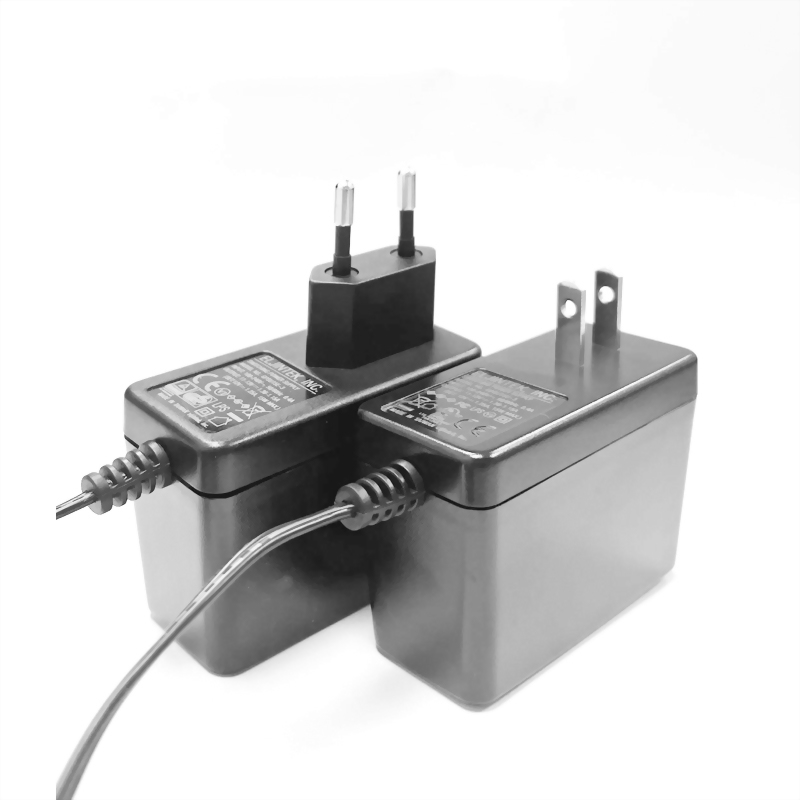

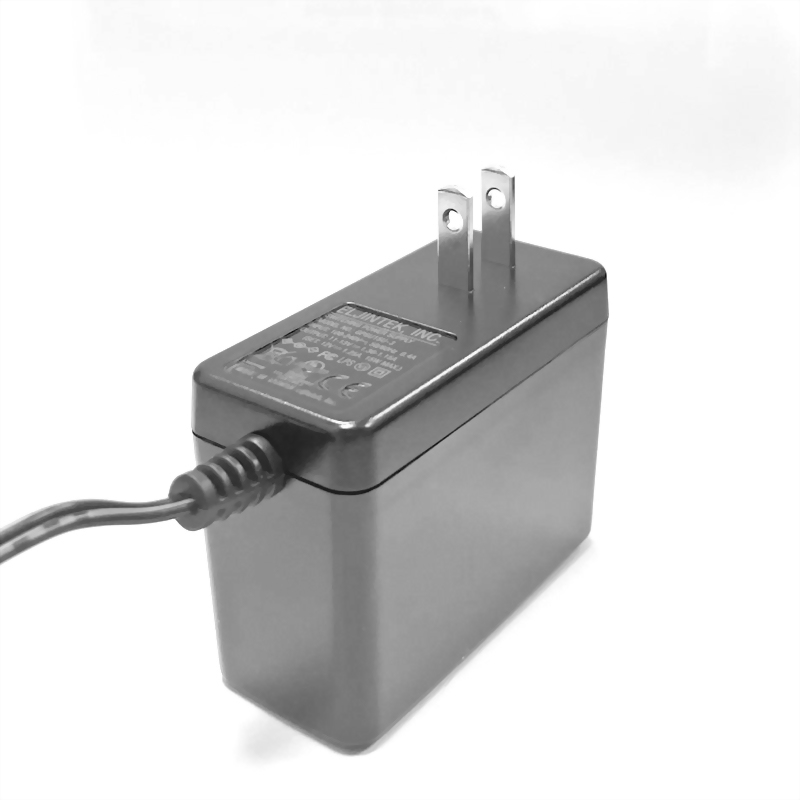

	GPSU15U-x	US TYPE

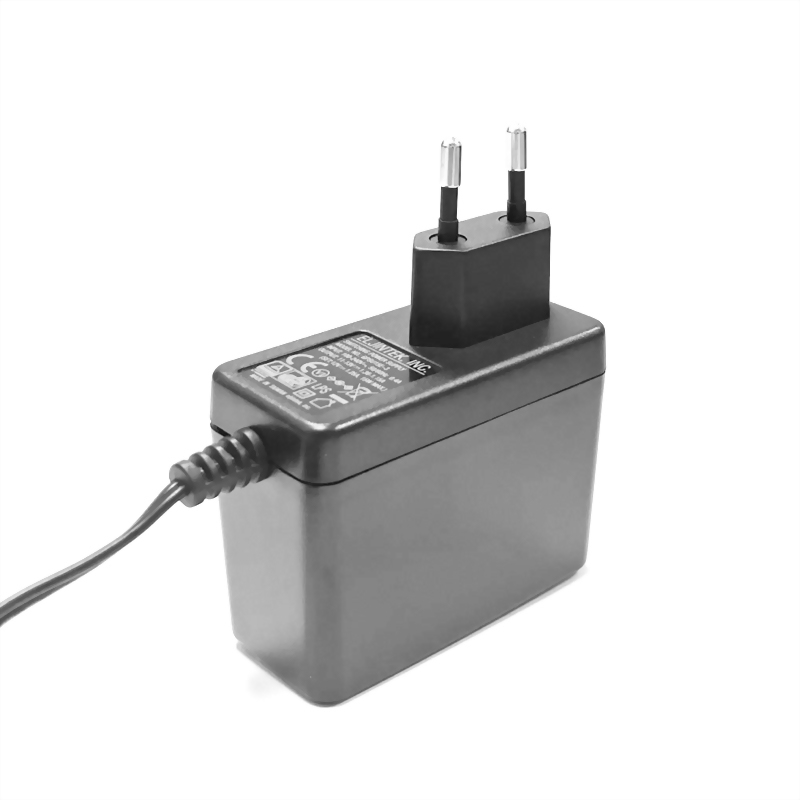

	GPSU15E-x	EU TYPE

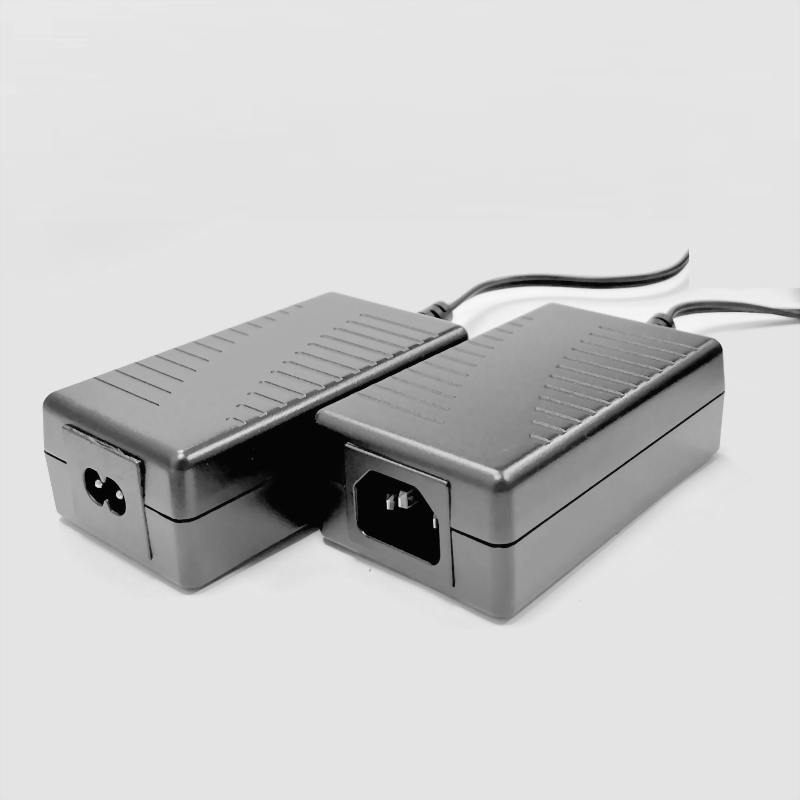

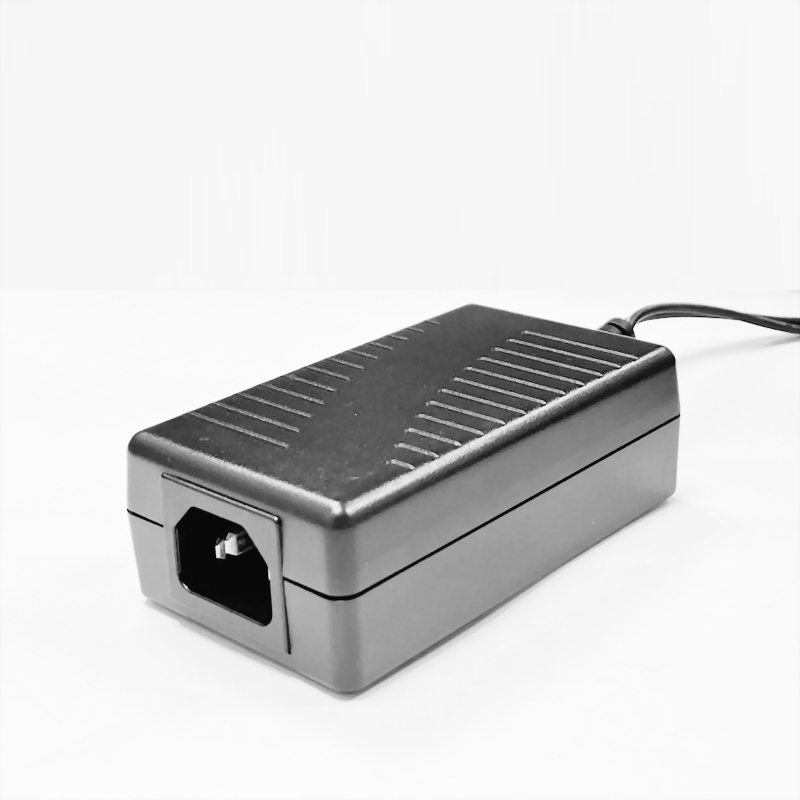

	GPSU15X-x	DESKTOP TYPE

15W ITE Grade Power Supplies - Specification

Model Number	Output Voltage	Output Current	Output Power	Ripple	Download
GPSU15X-0	3~5	2.40~1.46	7.3	100
GPSU15X-1	5~6	2.70~2.00	13.5	50
GPSU15X-1-1	6~8	2.50~1.80	15	80
GPSU15X-2	8~11	1.80~1.36	15	80
GPSU15X-3	11~13	1.36~1.15	15	80
GPSU15X-4	13~16	1.15~0.94	15	100
GPSU15X-5	16~21	0.94~0.72	15	120
GPSU15X-6	21~27	0.72~0.55	15	150
GPSU15X-7	27~33	0.55~0.45	15	240
GPSU15X-8	33~58	0.45~0.26	15	240

15W ITE Grade Power Supplies - Specification

Model Number	Output Voltage	Output Current	Output Power	Ripple	Download
APSU15X-0	3~5	2.40~1.46	7.3	100
APSU15X-1	5~6	2.70~2.00	13.5	50
APSU15X-1-1	6~8	2.50~1.80	15	80
APSU15X-2	8~11	1.80~1.36	15	80
APSU15X-3	11~13	1.36~1.15	15	80
APSU15X-4	13~16	1.15~0.94	15	100
APSU15X-5	16~21	0.94~0.72	15	120
APSU15X-6	21~27	0.72~0.55	15	150
APSU15X-7	27~33	0.55~0.45	15	240
APSU15X-8	33~58	0.45~0.26	15	240
