60W ITE Grade Power Supplies

Photo	Model Number	Type	Mechanical Specification	Packing
	APSU60U-x	US TYPE
	APSU60E-x	EU TYPE
	APSU60I-x	INTERCHANGEABLE TYPE
	APSU60X-x	DESKTOP TYPE

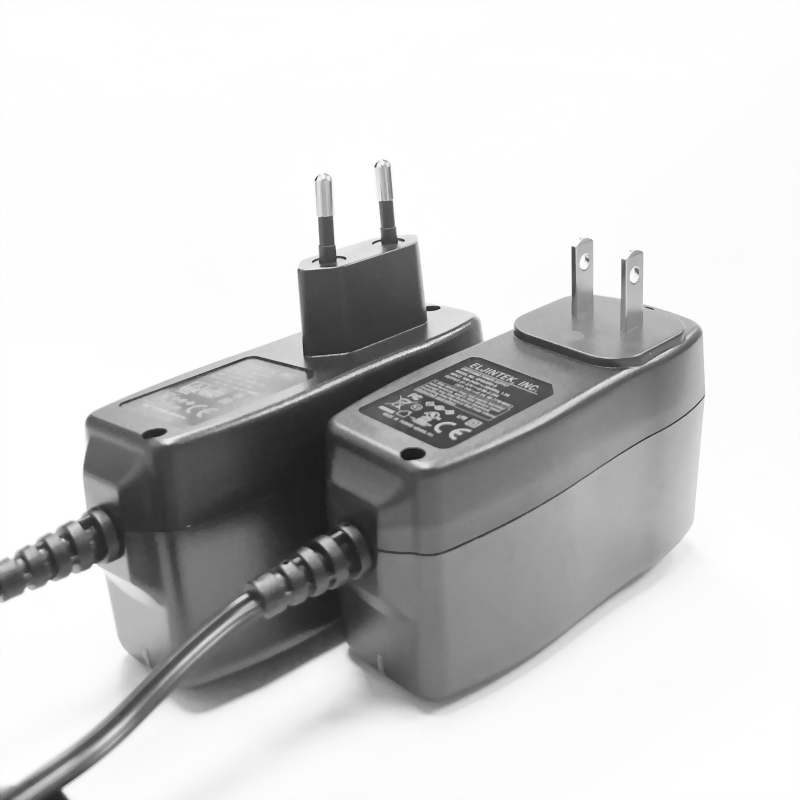

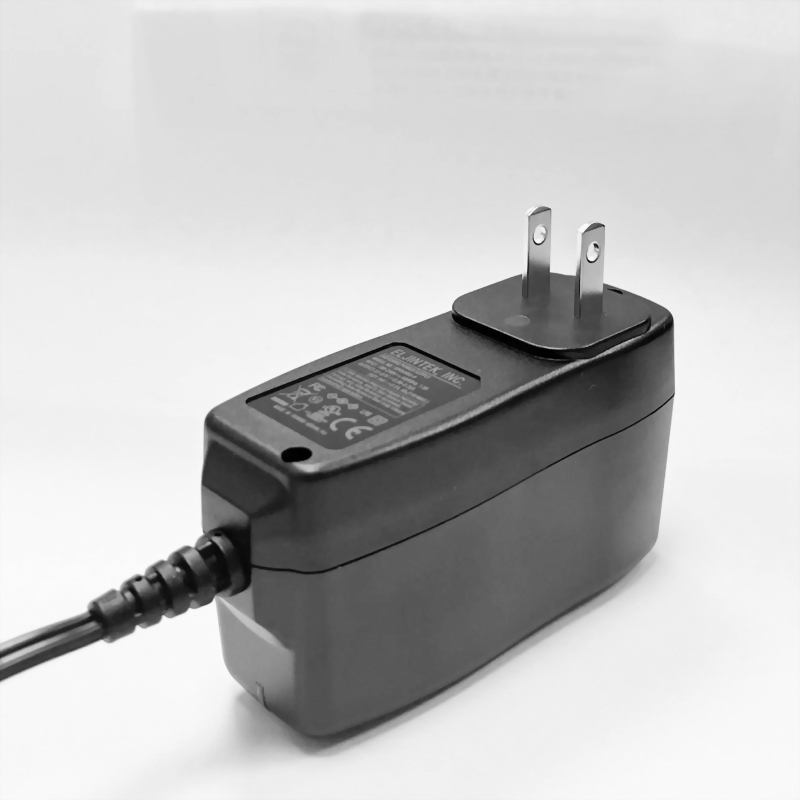

	GPSU60U-x	US TYPE

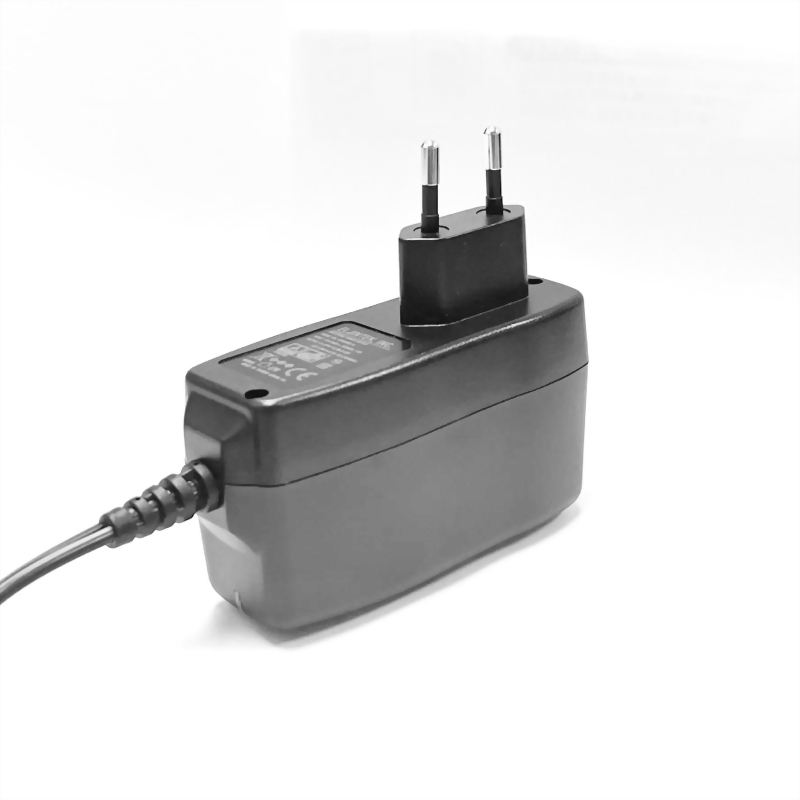

	GPSU60E-x	EU TYPE

60W ITE Grade Power Supplies - Specification

Model Number	Output Voltage	Output Current	Output Power	Ripple	Download
APSU60X-1	5~6	6.00~5.00	30	80
APSU60X-1-1	6~8	6.00~5.63	45.04	80
APSU60X-2	8~11	5.63~5.00	55	80
APSU60X-3	11~13	5.00~4.50	60	80
APSU60X-4	13~16	4.62~3.75	60	80
APSU60X-5	16~21	3.75~2.86	60.06	80
APSU60X-6	21~27	2.86~2.23	60.21	100
APSU60X-7	27~33	2.23~1.82	60.06	150
APSU60X-8	33~58	1.82~1.04	60.32	120

60W ITE Grade Power Supplies - Specification

Model Number	Output Voltage	Output Current	Output Power	Ripple	Download
GPSU60X-1	5~6	6.00~5.00	30	80
GPSU60X-1-1	6~8	6.00~5.63	45.04	80
GPSU60X-2	8~11	5.63~5.00	55	80
GPSU60X-3	11~13	5.00~4.50	60	80
GPSU60X-4	13~16	4.62~3.75	60	80
GPSU60X-5	16~21	3.75~2.86	60.06	80
GPSU60X-6	21~27	2.86~2.23	60.21	100
GPSU60X-7	27~33	2.23~1.82	60.06	150
GPSU60X-8	33~58	1.82~1.04	60.32	120
